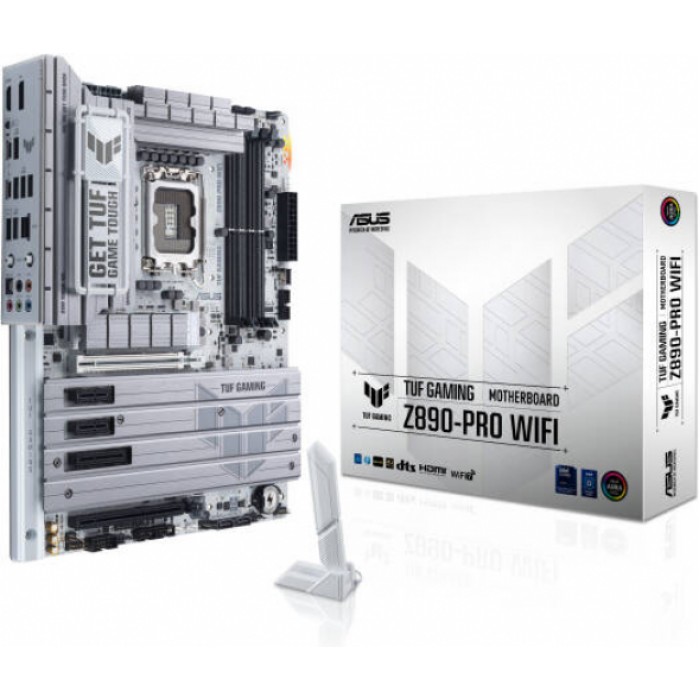

| Model | TUF GAMING Z890-PRO WIFI |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Intel® Turbo Boost Technology 2.0, Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5, Supports up to 9066+MT/s (OC), Dual Channel, Intel® XMP, ASUS Enhanced Memory Profile III, Non-ECC, Un-buffered |
| Graphics | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 2 x Thunderbolt™ 4 ports (USB Type-C®), Supports 4K@60Hz, Thunderbolt™ up to 8K@60Hz |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x4 slot, 2 x PCIe 4.0 x1 slots |
| Storage | 4 x M.2 slots, 4 x SATA 6Gb/s ports, PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2, Supports 2.4/5/6GHz, Bluetooth® v5.4 |
| USB (Rear) | 2 x Thunderbolt™ 4 ports (USB Type-C®), 6 x USB 10Gbps Type-A ports |
| USB (Front) | 1 x USB 20Gbps (Type-C® with up to 30W PD/PPS Fast-charge), 1 x USB 5Gbps header, 2 x USB 2.0 headers |
| Audio | Realtek ALC1220P 7.1 Surround Sound, Impedance sense, Jack-detection, Multi-streaming, Supports up to 32-Bit/192 kHz |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C®, 6 x USB 10Gbps Type-A, 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 4 x Chassis Fan headers, 4 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 20Gbps Type-C® connector, 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Thunderbolt™ header, 1 x Thermal Sensor header |
| Special Features | ASUS TUF Protection, DIGI+ VRM, ESD Guards, TUF LANGuard, SafeSlot, M.2 Q-Latch, Q-Release, Q-Antenna, Q-DIMM, Q-LED, M.2 heatsink, BIOS FlashBack™, Armoury Crate, Aura Sync |
| Software | Armoury Crate, Fan Xpert 4, ASUS DriverHub, USB Wattage Watcher, TurboV Core, DTS Audio Processing, Adobe Creative Cloud (Trial), Norton 360 for Gamers (Trial), WinRAR (Trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, ASUS EZ DIY, NPU Boost |
| Accessories | 2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, M.2 Q-Slide, TUF GAMING sticker, Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
